IM-0101X

IM-0101X

Industrial 10G Media Converter

1x 10GBASE-T Copper Ethernet port

1x 10G SFP+ Slot, support either Multi-Mode or Single-Mode

Built for harsh environments and wide temperature range application

IP30 housing

DIN-Rail Mounting, Optional Wall Mounting

Technology
Standards IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseX
IEEE 802.3ae 10GBase over Fiber
IEEE 802.3x Flow Control
Processing Type Store and forward
Interface
RJ45 Port 1x 100M/1G/2.5G/5G/10GT(x), auto negotiation speed duplex mode, auto MDI/MDI-X
Fiber Port 1x 10G SFP+ Slot
LED Indicators Per unit: PWR1, PWR2
Port: TP – Link/Act (Green)
Fiber – Link (Green)
Power Requirements
Operation Voltage 12-48VDC, redundant dual inputs
Connection 1x removable 4-contact terminal block
Power Consumption 0.17A@54VDC without PD load
Protection Overload Current Protected, Reverse Polarity Protected
Mechanical Construction
Enclosure SECC
Protection Class IP30
Dimensions 29x140x98 mm (WxHxD)
Weight 0.5 kg
Mounting DIN-Rail Mounting
Environmental Limits
Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 85°C
Ambient Relative Humidity 5 to 95%, (Non-Condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
Green RoHS Compliant
Certifications IEC 61000-6-2
IEC 61000-6-4
MTBF >100,000 hours
Warranty 5 Years

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

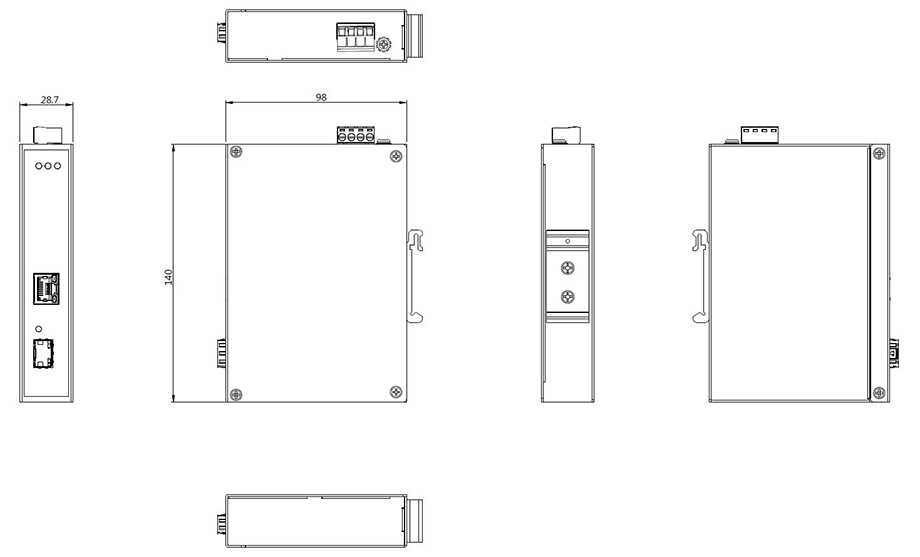

Unit = mm

Available Models
IM-0101X Industrial 10G Media Converter
- 1x 100M/1G/2.5G/5G/10GT(x) + 1x 10G-F SFP+ Slot
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
Optional Accessories
NDR-75-24 75W Industrial DIN-Rail Power Supply, 24VDC (metal case)
  • Datasheet
