EP-0402XV

EP-0402XV

4+2 Port Industrial Unmanaged PoE 2.5G Ethernet Switch with 10G uplink

4x 2.5G Ethernet ports with IEEE 802.3at PoE+

1x 10G SFP+ Slot

1x 10GBASE-T Ethernet ports

Built for harsh environments and wide temperature range application

IP30 housing

DIN-Rail Mounting

Technology
Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseX
IEEE 802.3ae 10GBase over Fiber
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
Processing Type Store and Forward
Switch properties
Switch Fabric 60Gbps
Priority Queues 8
MAC Table Size 4K
Packet Buffer 8Mbits
Interface
RJ45 Port 4x 10/100/1G/2.5GT(x) with PoE+,
1x 100M/1G/2.5G/5G/10GT(x), auto negotiation speed duplex mode, auto MDI/MDI-X
Fiber Port 1x 10GF(x) SFP+ Slot
PoE Pin Out V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
LED Indicators Per unit: PWR1, PWR2
Ports: Link/Active (Green)
PoE: Output Power (Amber)
Power Requirements
Operation Voltage 48-57VDC, redundant dual inputs, >50VDC for PoE+ output recommended
Connection 1x removable 4-contact terminal block
Power Consumption 0.05A@48VDC without PDs' consumption
PoE Power Budget 120W
Protection Overload Current Protected, Reverse Polarity Protected
Mechanical Construction
Enclosure SECC
Protection Class IP30
Dimensions 29x140x98 mm (WxHxD)
Weight 0.7 kg
Mounting DIN-Rail Mounting
Environmental Limits
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (Non-Condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
Green RoHS Compliant
MTBF >100,000 hours
Warranty 5 Years

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

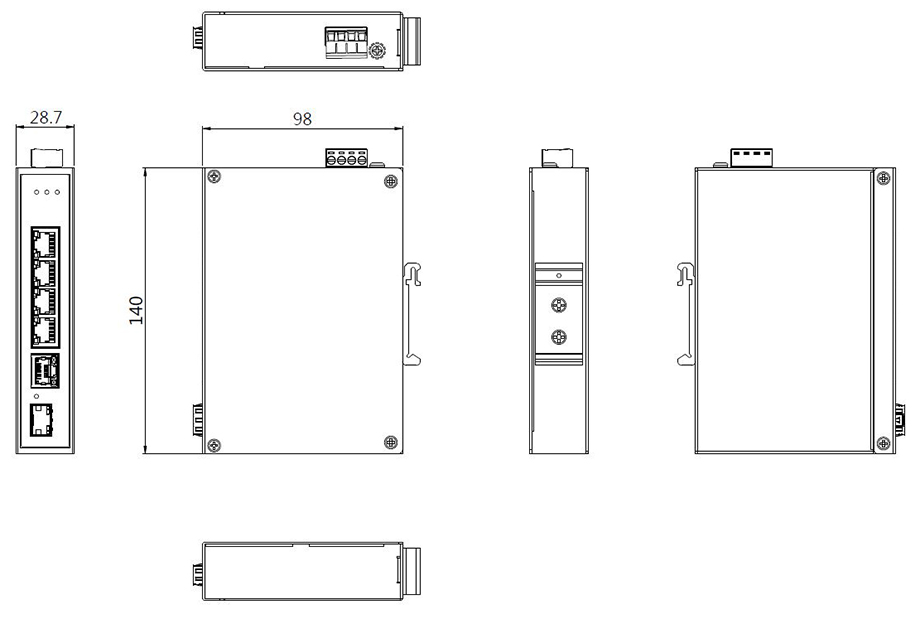

Unit = mm

Available Models
EP-0402XV-T 4+2 Port Industrial Unmanaged PoE 2.5G Ethernet Switch with 10G uplink
- 4x 10/100/1G/2.5GT(x) with 30W PSE+
- 1x 100/1G/2.5G/5G/10GT(x) + 1x 10G SFP+ slot
- Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Optional Accessories
NDR-240-48 240W Industrial DIN-Rail Power Supply, 48VDC (metal case)
NDR-480-48 480W Industrial DIN-Rail Power Supply, 48VDC (metal case)
